Integrate Electric power Ethernet & RF Slip Ring with Radio Frequency Rotary Union

  • 1
  • 2
  • 3

Brand Name : CENO

Model Number : ECN000-02P3-04P2-16P1-01EG-03R

Certification : ISO9001,CE,RoHS,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal,, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1 week

Packaging Details : Carton

Channels : 3 channels * SMA-f radio frequency

Interface : SMA-f

Frequency : DC to 18GHz

Average power : 50W@1Ghz; 30W@1Ghz; 30W@1Ghz

Insert loss : 50dB

Current & Circuits : 2 * 15A; 4 * 10A; 16 * 2A; 1 * 1000M Ethernet

Rating Voltage : 0 ~ 220VAC/VDC

Dielectric strength : ≥1000VAC@50Hz; ≥300VAC@50Hz

Isolation resistance : ≥500MΩ@500VDC; ≥100MΩ@300VDC

IP protection grade : IP51

Operating speed : 0~50 rpm

Working temperature : -20°C~+60°C

Lead wire length & size : As customized

Contact Now

Integrate Electric power Ethernet & RF Slip Ring with Radio Frequency Rotary Union

ECN000-02P3-04P2-16P1-01EG-03R is CENO integrate slip ring which combine circuits electric power, Ethernet signal and 3 channels RF signal. RF slip rings are specially designed for transmitting low or high-frequency RF signals. They can be divided into single-channel and multi-channel RF slip rings. They can also be integrated with electrical signals and other communication signals to meet all transmission needs of modern complex systems, For more information please contact us.


Specification

ECN000-02P3-04P2-16P1-01EG-03R Specification
Current & Circuits 2 * 15A; 4 * 10A; 16 * 2A; 1 * 1000M Ethernet; 3 * RF
Rating Voltage 0 ~ 220 VAC/VDC
Dielectric strength ≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance ≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave ≤ 30mΩ
Working temperature -20°C~+60°C
Working humidity 60%RH
IP protection grade IP51
Operating speed 0~50rpm
Outer diameter Ø119mm
Contact material Precious metal
Housing material Aluminium Alloy
Lead wire length As customized
Rotation way Flange installation
Radio frequency Parameters
Channel1 Channel 2 Channel 3
Connector type SMA-f (50Ω) SMA-f (50Ω) SMA-f (50Ω)
Frequency range DC to 18GHz DC to 18GHz DC to 18GHz
VSWR (max)

1.4@DC-8GHz

1.8@8-18GHz

2@DC-4GHz

3@4-8GHz

3.5@8-12GHz

4.5@12-18GHz

2@DC-4GHz

3@4-8GHz

3.5@8-12GHz

4.5@12-18GHz
Insert loss (max)

0.5dB@DC-8GHz

1.1dB@8-18GHz

0.75dB@DC-4GHz

1.5dB@4-8GHz

2.5dB@8-12GHz

3dB@12-18GHz

0.75dB@DC-4GHz

1.5dB@4-8GHz

2.5dB@8-12GHz

3dB@12-18GHz
Average power 50W@1Ghz 30W@1Ghz 30W@1Ghz
Isolation 50dB 50dB 50dB

Features

  • Integrate power, Ethernet & 3 channels radio frequency and option
  • Stable performance & variety of functions
  • Install easy & Free maintenance

Applications

  • Radar antenna
  • Air traffic control radar
  • EMC system
  • Electronic warfare system
  • Air traffic control radar

Optional

  • Circuit, Voltage, Current
  • Channels & frequency range
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature

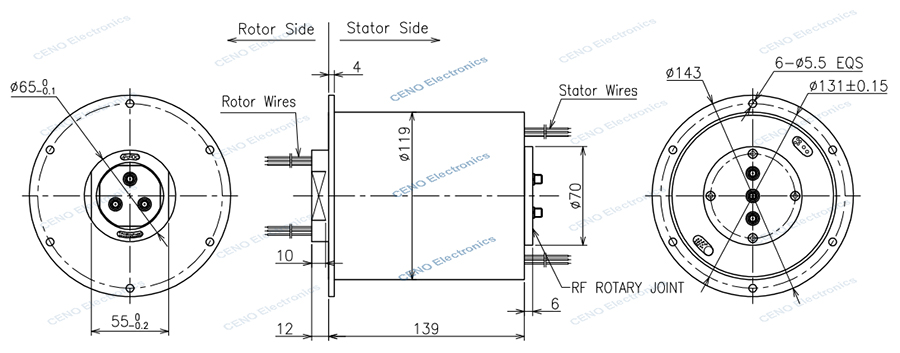

Outline drawing

Integrate Electric power Ethernet & RF Slip Ring with Radio Frequency Rotary Union
