Pancake Slip Ring with PCBA style electric power and CANBus signal for robot arms

Name: Pancake Slip Ring with PCBA style electric power and CANBus signal for robot arms
Brand: CENO
Price: 1 USD

Quality Pancake Slip Ring with PCBA style electric power and CANBus signal for robot arms for sale

Brand Name : CENO

Model Number : PSCN020-02P1-02S

Certification : CE,RoHS,UL,ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T,Paypal,Western Union

Supply Ability : 10000pcs per month

Delivery Time : 2 weeks

Packaging Details : Carton/As request

Current & Circuits : 2 circuits * 5A; 2 circuits * CanBus Signal

Rating Voltage : 0~100VAC/VDC

Dielectric strength : ≥300VAC@50Hz

Isolation resistance : ≥100MΩ@100VDC

Electrical noise : ≤30mΩ (50rpm)

Operating speed : 0~80rpm

Contact material : Gold to gold

Materials : FR-4

Working temperature : -20°C~+60°C

Working humidity : 60%

IP protection grade : IP00

Through hole size : Ø20mm

Lead wire size & length : As customized

Contact Now

Pancake Slip Ring with PCBA style electric power and CANBus signal for robot arms

PSCN020-02P1-02S is CENO spare parts slip ring with 4 circuits electric power and CANBus signal, inner bore size is optional from 1mm to 600mm. PCBA slip ring is one kind of pancake slip ring, which is called ultra-thin flat slip ring, and including stator side and rotor side also. Stator side and rotor side connected by springs that one side is soldering on rotor side or stator side. PCBA slip ring is mainly used in the place Medical facility, textile robots, total station or Antenna etc.

Features

Through hole 0-600mm optional
Separate components or integrated assemblies and simply installation
Working speed be up to 500rpm
Install easy & Free maintenance

Applications

Automatic machine
LED industry
Total station
Electric devices
Medical equipment

Optional

Circuits, Voltage, Current
Inner / outer diameter
Contact / Housing Materials
Structure & PCB material
Working speed & temperature

Specification

PSCN020-02P1-02S	Specification
Current & Circuits	2 circuits * 5A; 2 circuits * CanBus Signal
Rating Voltage	0 ~ 100 VAC/VDC
Dielectric strength	≥300VAC@50Hz
Isolation resistance	≥100MΩ@100VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP00
Operating speed	0~80rpm
Inner diameter	Ø20mm
Contact material	Gold to Gold
Housing material	FR4
Rotation way	Flange installation

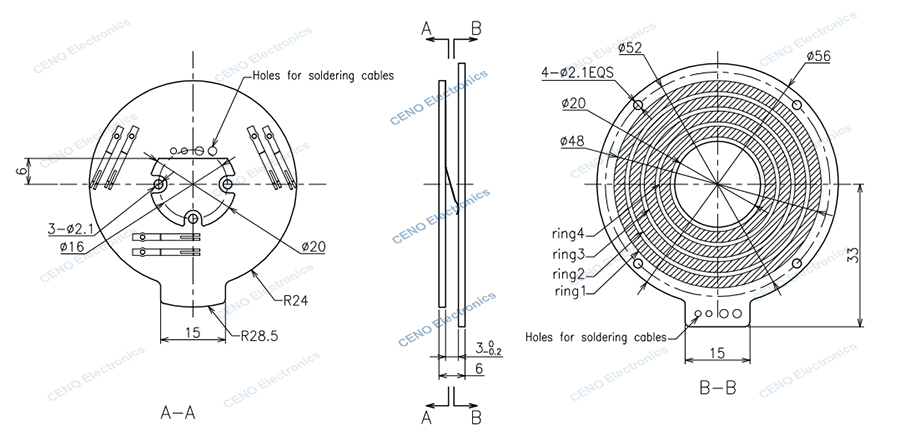

Outline drawing
Pancake Slip Ring with PCBA style electric power and CANBus signal for robot arms

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
